Product Description

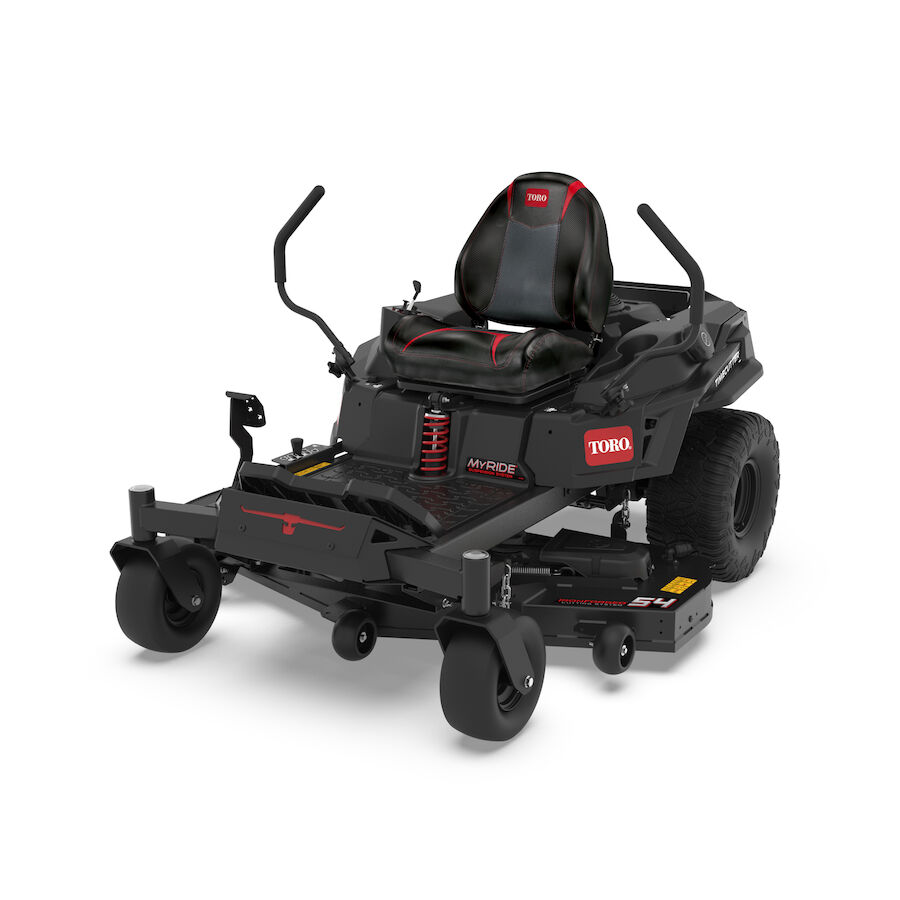

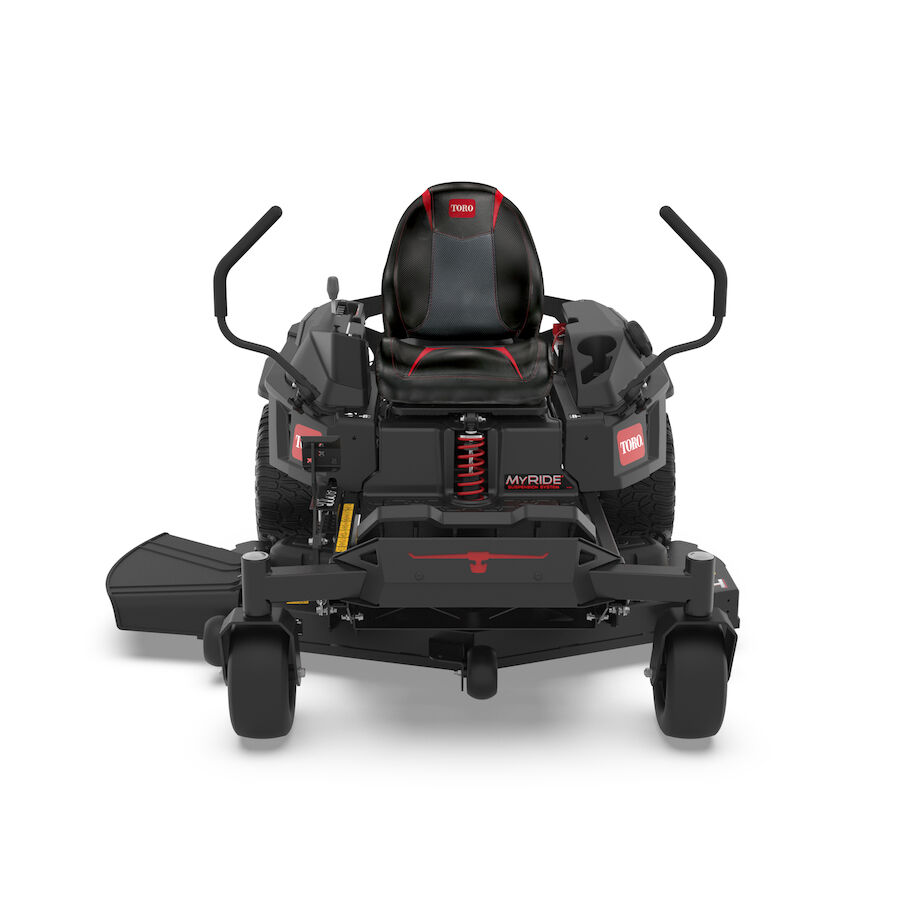

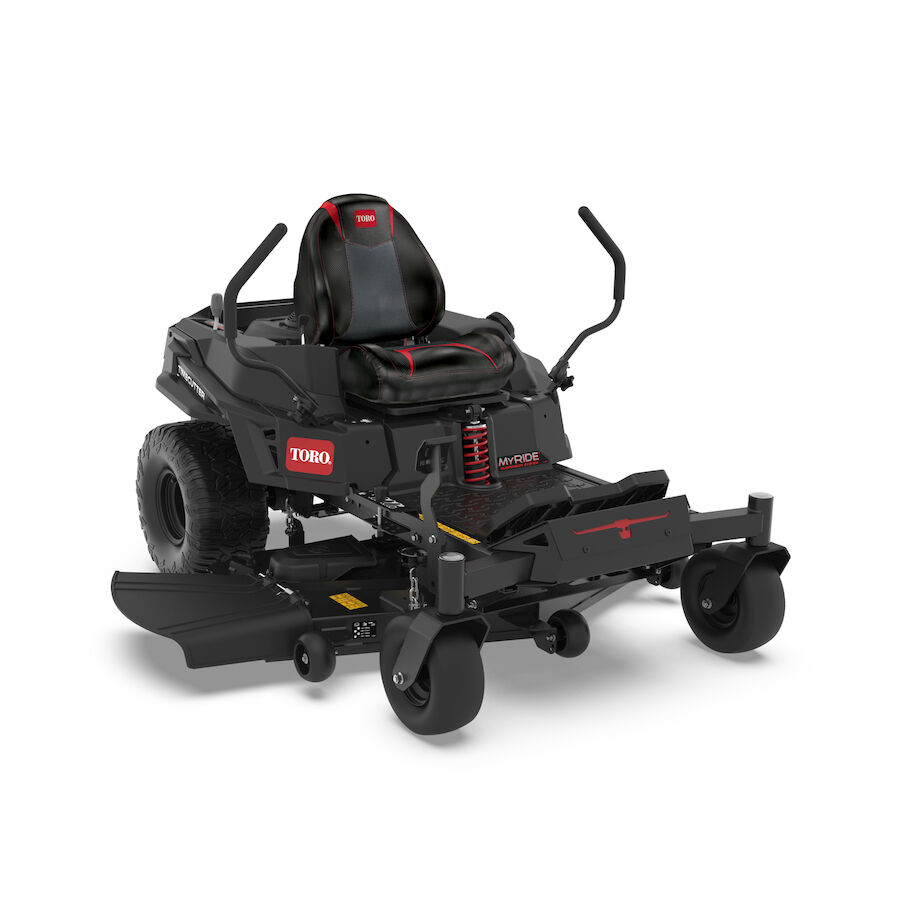

The Toro TimeCutter Max Havoc MyRIDE 54-Inch Zero-Turn Mower combines professional-inspired durability, powerful Kawasaki performance, and an advanced suspended operator platform for fast, comfortable residential mowing.
At its core is a 23 HP Kawasaki FR691V V-twin engine with 726cc displacement. The air-cooled gasoline engine delivers dependable power for cutting large residential lawns, navigating changing grass conditions, and operating the mower’s wide three-blade deck. Toro pairs the engine with dual Hydro-Gear EZT-2200 hydrostatic transmissions for smooth acceleration, independent wheel control, and true zero-turn maneuverability.
The mower features a commercial-inspired 54-inch IronForged fabricated deck constructed from heavy-duty 10-gauge steel. Its reinforced leading edge, large cast-aluminum spindle housings, and material-reinforced belts are designed to withstand demanding residential use while maintaining a consistent cut.
Toro’s patented MyRIDE Suspension System isolates the operator platform from the mower frame. Instead of transferring every bump directly through the seat, the suspended platform moves independently to reduce vibration and impact across uneven lawns. This can improve comfort and help the operator maintain mowing speed over rougher terrain.
The TimeCutter Max Havoc uses a fully tubular steel frame for structural strength and a four-point deck-hanging system that keeps the deck stable when the operator gets on or off the mower. Hybrid-tread rear tires provide traction while helping reduce turf damage, and full fenders help block mud, water, and grass spray from reaching the operator and engine area.
A professional-style drop-pin height adjustment allows the cutting deck to be positioned between approximately 1 and 5 inches. Three blades cover the full 54-inch cutting width, while standard anti-scalp wheels help protect the lawn when crossing uneven sections.
The five-gallon fuel tank uses an automotive-style filler neck for cleaner refueling, while the integrated oil-drain hose helps simplify routine engine servicing. The 19-inch gaming-style seat, cup holder, twin steering levers, and MyRIDE platform create a comfortable and controlled operator station.
Key Features
23 HP Kawasaki V-Twin Engine
The Kawasaki FR691V provides 726cc of displacement and strong residential mowing performance.
54-Inch IronForged Fabricated Deck
The heavy-duty 10-gauge steel deck covers large areas efficiently and provides improved durability compared with lighter stamped-deck designs.
MyRIDE Suspension System
The fully floating operator platform is isolated from the mower frame to reduce the impact of bumps and uneven terrain.
Dual Hydrostatic Transmissions
Independent Hydro-Gear EZT-2200 transmissions provide smooth speed changes and precise zero-turn steering.
Fully Tubular Steel Frame
The reinforced frame provides a rigid foundation for the engine, deck, suspension, and drive system.
Three-Blade Cutting System
Three steel blades provide even cutting coverage across the full 54-inch deck width.
Drop-Pin Height Adjustment
A professional-style pin system allows quick cutting-height changes from approximately 1 to 5 inches.
Hybrid-Tread Rear Tires
The wide rear tires provide traction while helping avoid excessive damage to maintained turf.
Spray-Blocking Fenders
Full fenders help keep water, mud, and grass clippings away from the engine and operator.
Five-Gallon Fuel Tank
The large fuel capacity supports longer mowing sessions with fewer refueling stops.
Automotive-Style Fuel Fill
The angled fuel filler helps reduce spills and makes the tank easier to refill.
Integrated Oil-Drain Hose
Provides cleaner access when performing scheduled engine-oil changes.
Electric PTO Clutch
The cutting blades engage through an electromagnetic clutch controlled from the operator position.
Washout Port
The standard washout connection allows a garden hose to be attached for cleaning grass buildup beneath the deck.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Toro |
| Product Series | TimeCutter Max Havoc MyRIDE |
| Official Model Number | 77507 |
| UPC/EAN | 021038775074 |
| Unique Model Name | TimeCutter Max Havoc 54 K23 |
| Generated SKU | TOR-77507-TCMH54-K23 |
| Product Type | Residential zero-turn riding mower |
| Power Source | Gasoline |
| Engine Brand | Kawasaki |
| Engine Model | Kawasaki FR691V |
| Engine Type | Air-cooled V-twin |
| Engine Displacement | 726cc |
| Gross Horsepower | 23 HP |
| Starting System | Electric start |
| Recommended Oil | SAE 10W-30 |
| Fuel Capacity | 5 gallons |
| Cutting Width | 54 inches / 137 cm |
| Deck Name | Toro IronForged |
| Deck Construction | Fabricated steel |
| Deck Material | 10-gauge steel |
| Number of Blades | 3 |
| Blade-Tip Speed | Approximately 17,700 ft/min |
| Cutting-Height Range | Approximately 1–5 inches |
| Deck Suspension | Four-point hanging system |
| Anti-Scalp Wheels | 3 standard |
| Discharge Type | Side discharge |
| Blade Engagement | Electromagnetic PTO |
| Transmission | Dual Hydro-Gear EZT-2200 hydrostatic |
| Steering | Twin-lever zero-turn controls |
| Maximum Forward Speed | Up to 7 mph |
| Maximum Reverse Speed | Up to approximately 3.5 mph |
| Suspension | Toro MyRIDE operator-platform suspension |
| Seat | 19-inch gaming-style seat |
| Frame | Fully tubular steel |
| Front Tires | 12 × 6 inches |
| Rear Tires | 20 × 11 inches, hybrid tread |
| Spindle Housing | Cast aluminum |
| Spindle Bearings | Maintenance-free |
| Greasable Bearings | Yes |
| Washout Port | Standard |
| Hitch Bracket | Standard |
| Hour Meter | Optional |
| Lighting | Optional |
| Approximate Weight | 684 lb / 310.3 kg |
| Recommended Use | Large residential lawns |
| CARB Compliance | Not CARB compliant |
Toro rates the engine at 23 gross horsepower at 3,300 rpm under SAE testing standards. Actual available horsepower can be lower when the engine is installed and configured to meet operating, emission, and safety requirements.
Cutting Deck and Performance
The 54-inch IronForged deck is built from 10-gauge steel and supported by a four-point hanging system. Its reinforced front edge protects the deck from routine impacts, while the three-blade system provides full-width cutting coverage.
The mower is supplied in a side-discharge configuration. Compatible mulching and grass-collection accessories may be purchased separately.
The deck’s cutting height can be adjusted between approximately 1 and 5 inches, allowing the operator to adapt the mower to different grass types, seasonal conditions, and preferred lawn appearance.
MyRIDE Suspension System
Toro’s MyRIDE system suspends the operator platform separately from the main mower frame. The seat, foot platform, and controls move together while the mower frame follows the terrain underneath.
This design helps:
- Reduce impact from bumps and uneven ground
- Limit vibration transferred to the operator
- Improve comfort during longer mowing sessions
- Maintain better operator control over rough sections
- Support faster mowing where conditions allow
Transmission and Handling
The dual hydrostatic transmission provides independent control of the two rear drive wheels.
Moving both control levers forward drives the mower ahead. Moving one lever farther than the other creates a gradual turn, while moving the levers in opposite directions allows the mower to rotate within its own footprint.
The mower can reach approximately 7 mph moving forward, making it suitable for larger residential properties where speed and maneuverability are important.
Recommended Applications
The Toro TimeCutter Max Havoc model 77507 is suitable for:
- Large residential lawns
- Properties of approximately two acres or more
- Lawns with trees, beds, and other obstacles
- Flat and moderately uneven terrain
- Homeowners seeking professional-style cutting performance
- Users prioritizing suspension comfort
- Properties requiring a wide 54-inch cutting deck
It is designed for mowing maintained turf rather than brush, agricultural vegetation, or unmanaged woodland.
What’s Included
- 1 × Toro TimeCutter Max Havoc MyRIDE zero-turn mower
- 1 × 23 HP Kawasaki FR691V engine
- 1 × 54-inch IronForged fabricated cutting deck
- 3 × Steel cutting blades
- 1 × MyRIDE suspended operator platform
- Dual Hydro-Gear EZT-2200 transmissions
- 1 × 19-inch gaming-style seat
- Standard side-discharge chute
- Standard anti-scalp wheels
- Standard hitch bracket
- Five-gallon fuel tank
- Integrated oil-drain hose
- Deck washout port
- Operator’s manual
- Manufacturer safety and warranty documentation
